Product Name: Laser Pump Chamber (Cavity)

Product Description

Single- or dual-lamp high-efficiency laser pump chambers/cavities can accommodate laser rods of 3 to 10mm in diameter and up to 180mm in length. A laser pump chamber consists of ---

• Stainless steel or non-metal body
• Gold-coated elliptical reflector or ceramic diffuse reflector
• Series or parallel cooling path
• Crystal & lamp water jackets
• Coolant fitting
• O-rings
• Lamp (optional)
• Laser rod (optional)

1. Gold-coated laser pump chambers/cavities:

single-lamp cavity (single lamp and single rod)

Remark: suitable to YAG rods of 3-9mm in length and lamps of 4-10mm in outside diameter.

Dual-lamp cavity (two lamps and single rod)

  Remark: suitable to YAG rods of 3-9mm in length and lamps of 4-10mm in outside diameter

2. Ceramic laser pump chambers/cavities:

single-lamp cavity (single lamp and single rod)

• Model: BPQT-97

• Ceramic reflector TCT97 used

• Matchable YAG rods: dia. 3-7mm, length 120mm or longer

• Matchable lamps: ST5171, ST5166, NL9764 or lamps with arc length 100mm

• Suitable for 50W to 100W YAG lasers

single-lamp cavity (single lamp and single rod)

• Model: BPQT-117

• Ceramic reflector TCT117 used

• Matchable YAG rods: dia. 3-7mm, length 140mm or longer

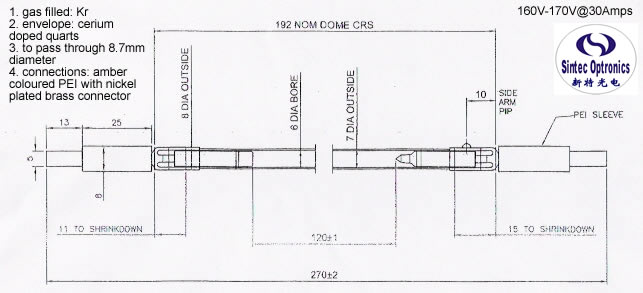

• Matchable lamps: F256, ST5647 or lamps with arc length 120mm

• Suitable for 80W to 150W YAG lasers

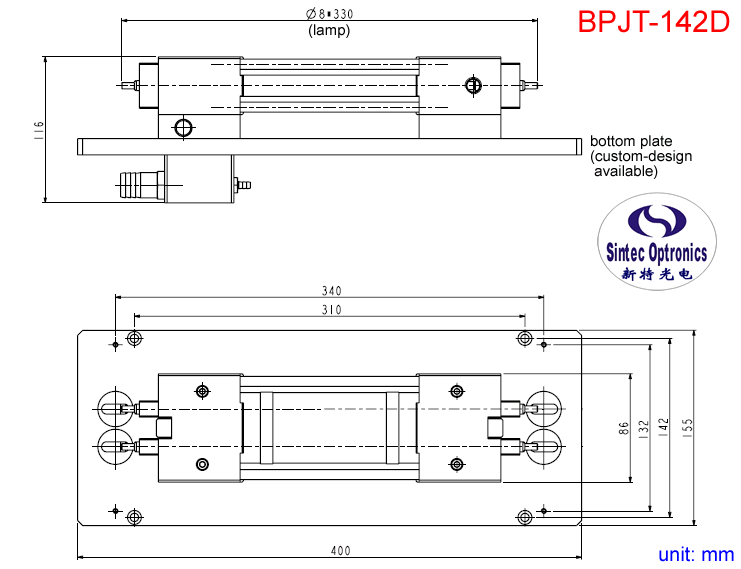

dual-lamp cavity (double lamp and single rod)

• Model: BPQT-142D

• Ceramic reflector TCT142D used

• Matchable YAG rods: dia. 3-8mm, length 165mm or longer

• Matchable lamps: NL9762, ST5108 or arc length 140-150mm or longer,

• Suitable for 250W to 350W YAG lasers

dual-lamp cavity (double lamp and single rod)

• Model: BPQT-130D

• Ceramic reflector BAB-350 used

• Matchable YAG rods: dia. 3-8mm, length 140mm or longer

• Matchable lamps: arc length 130-140mm or longer & OAL 270mm.

• Suitable for 200W to 300W YAG lasers

Dimension and Weight of Package:

The pump chamber will be packed using a cartoon box 380x175x249mm. Typical weights are given as follows:
